Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer

Name: Plastic Polymer Materials Thermal Expansion Tester with 30 to 30 Range and 130minute Heating Rate Dilatometer
Brand: LIYI
Price: 1 USD

Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer Manufactures

Brand Name : LIYI

Place of Origin : Guangdong, China

Model Number : LIYI

MOQ : 1

Temperature range : -30℃ ~ 30℃

Dilatometer orientation : Horizontal

Sample length : 50mm(max) or 25mm

Sample diameter : 6~10 mm; round or square

LVDT displacement range : 0.1-1um

Heating rate : 1 ~ 30℃ /minute, accuracy ±1 ℃

Power supply : 220V, 50HZ

Measuring range : ± 5 mm ± 0.1%

Sample holder : Quartz

Probe rod : Quartz

Cooling method : External water bath/compressed air

Calibration standards : Quartz standard sample

Data acquisition : Onboard computer with printer

Software platform : Windows 8/7/XP

Heating accuracy : ±1℃

Contact Now

Plastic Polymer Materials Thermal Expansion Tester Testing Dilatometer

Product Description

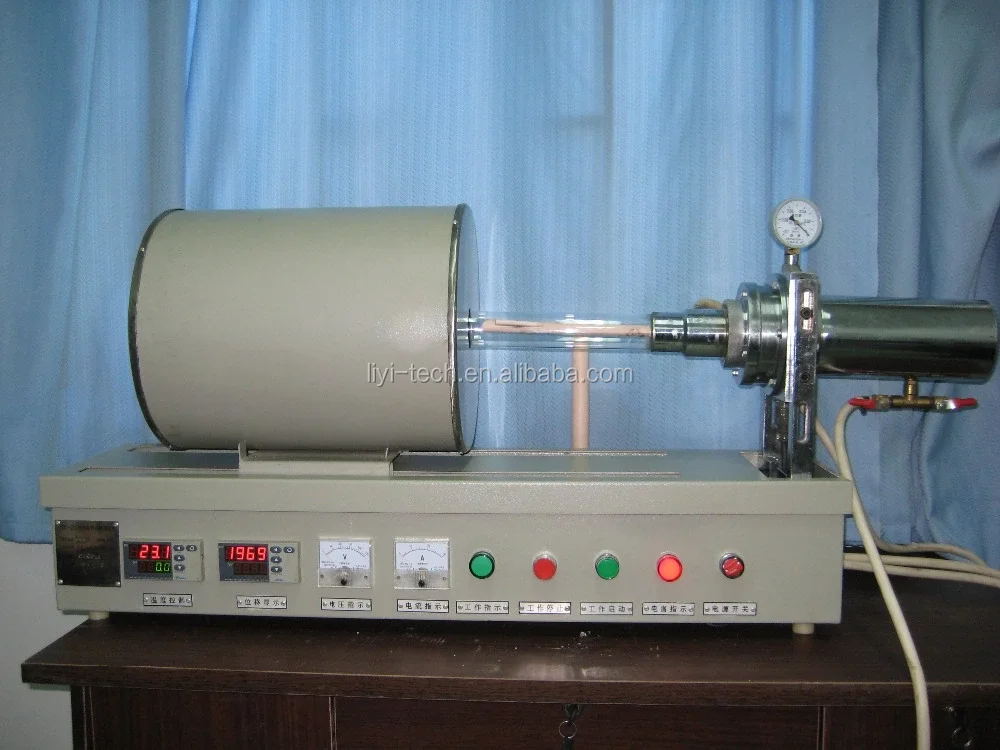

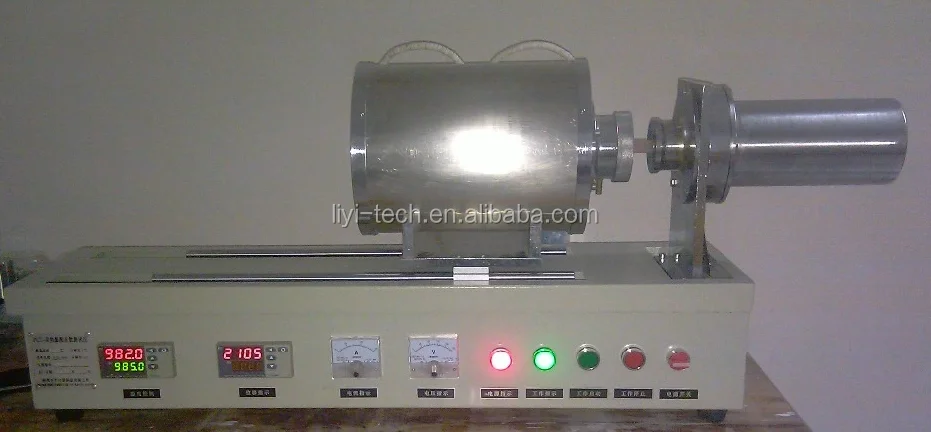

The instrument is used to test the plastic polymer materials within the prescribed scope temperature linear expansion coefficient. Single push rod dilatometer for measurement of length changes (expansion and/or shrinkage) along with operating and data acquisition software, hardware and calibration standards.

Specifications

Temperature test range	-30℃ ~ 30℃
Sample diameter	6~10 mm; round or square
Sample length	50mm(max) or 25mm
Cooling	External water bath/compressed air
Measuring range and error	± 5 mm ± 0.1%
Sample holder and probe rod	Quartz
Dilatometer orientation	Horizontal
LVDT displacement range	0.1-1um
Heating rate	1 ~ 30℃ /minute, accuracy ±1℃
Calibration standards	Quartz standard sample
Temperature control	Experimental process controls parameters, including PID parameters and the way of communication. Arbitrary adjust, set, lock are realized by intelligent instrument in the whole process. Modify parameters by computer.
Data Acquisition	Trough onboard computer with printer, software English version can work in platform of Windows 8/7/XP.
Power supply	220V, 50HZ
Product list	Test host, Cold thermostatic bath, Quartz standard sample, Testing software

Products Detail

Plastic Polymer Materials Thermal Expansion Tester with -30℃ to 30℃ Range and 1-30℃/minute Heating Rate Dilatometer

Recommend Products

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

FAQ

1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer like Environmental Chambers, Industrial Ovens, Universal Tensile Testers, UV Aging Test Chambers, Industrial Muffle Furnaces, Paper Packing Testers, Plastic Rubber Testers, Adhesive testers and other testing Equipment.. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.

Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
